Overview

The checkout flow is the simplest way to accept payments with Waypay. It provides a fully hosted payment page where customers can complete their purchase using various payment methods including cards and mobile wallets.

​

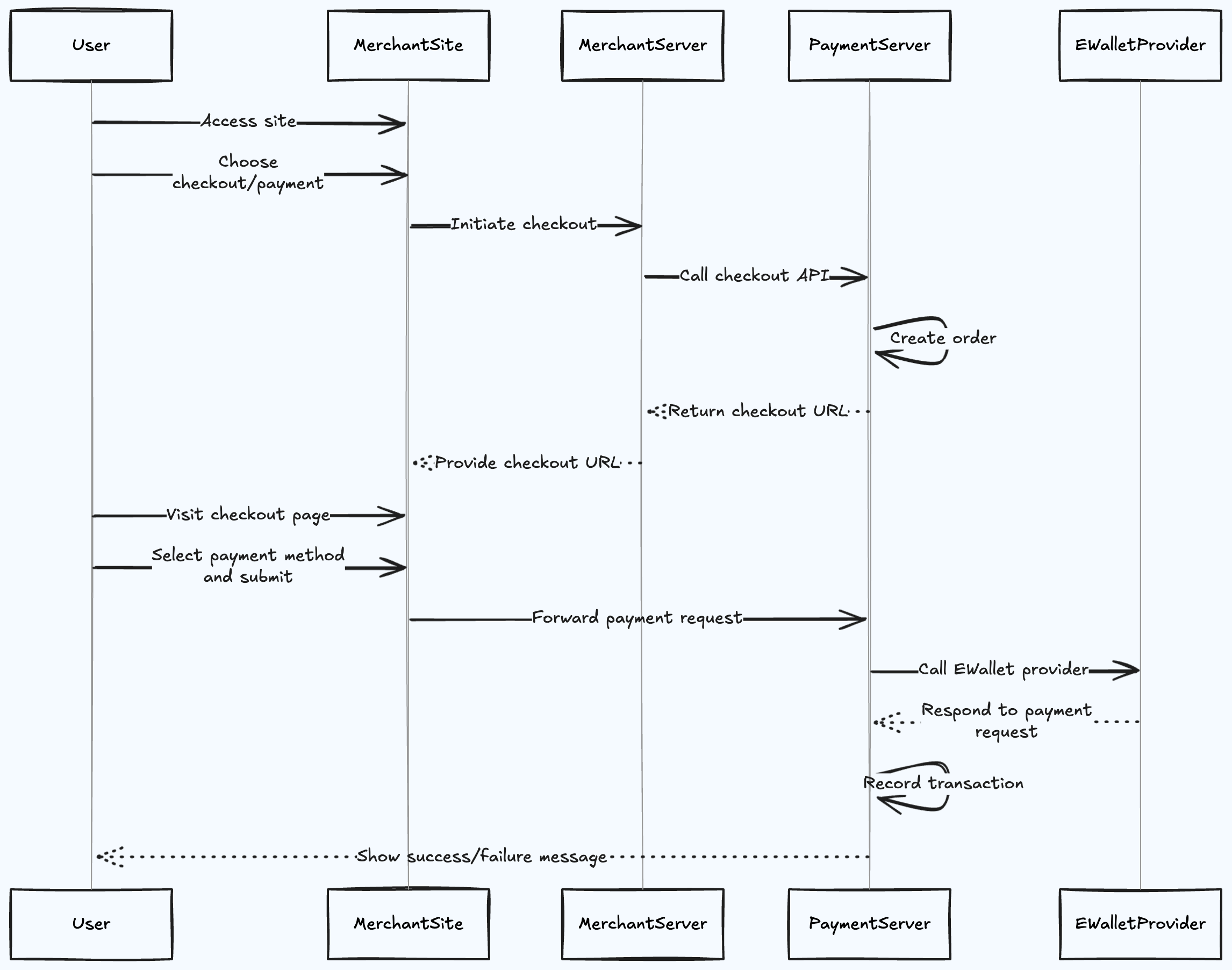

Flow Diagram

Checkout Flow Diagram - Light Mode

​
Step-by-Step Flow

​
Step 1: User Accesses Your Site

The customer visits your merchant website and browses products or services.

​
Step 2: User Chooses Checkout/Payment

The customer adds items to cart and proceeds to checkout, ready to make a payment.

​
Step 3: Merchant Site Initiates Checkout

Your merchant site sends a request to your backend server to initiate the checkout process.

​
Step 4: Merchant Server Calls Checkout API

Your server makes a call to the Waypay /Payment/initiate-checkout endpoint with payment details:
curl --request POST \
  --url https://gateway.dev.waypay.live/Gateway/v1/Payment/initiate-checkout \
  --header 'SWICH-API-Key: pk_test_xxxxxxxx' \
  --header 'Content-Type: application/json' \
  --data '{
    "amount": 2500,
    "currency": "PKR",
    "description": "Order #12345",
    "customerRef": {
      "name": "Ali Ahmed",
      "email": "ali@example.com",
      "cnic": "4210112345678",
      "phone": "03001234567"
    },
    "orderRef": {
      "orderRef": "ORD12345"
    },
    "callbackUrl": "https://yoursite.com/payment/callback"
  }'

​
Step 5: Payment Server Creates Order

The Waypay Payment Server receives your request and creates a payment order in the system.

​
Step 6: Return Checkout URL

Waypay returns a checkout URL to your merchant server:
{
  "paymentIntentId": "550e8400-e29b-41d4-a716-446655440000",
  "checkoutUrl": "https://checkout.waypay.com/pay/abc123xyz",
  "expiresAt": "2025-12-13T12:00:00Z"
}

​
Step 7: Provide Checkout URL to User

Your merchant site receives the checkout URL and redirects the customer to it.

​
Step 8: User Visits Checkout Page

The customer is taken to the Waypay hosted checkout page where they see:
  • Order summary
  • Payment amount
  • Available payment methods
  • Customer information

​
Step 9: Select Payment Method and Submit

The customer:
  1. Reviews the order details
  2. Selects their preferred payment method (card, JazzCash, Easypaisa, etc.)
  3. Enters payment credentials
  4. Submits the payment

​
Step 10: Forward Payment Request

The merchant site forwards the payment request to the Waypay Payment Server for processing.

​
Step 11: Call E-Wallet Provider

The Payment Server communicates with the selected E-Wallet Provider (JazzCash, Easypaisa, etc.) to process the transaction.

​
Step 12: E-Wallet Provider Responds

The E-Wallet Provider:
  • Validates payment credentials
  • Processes the transaction
  • Returns the result (success/failure)

​
Step 13: Record Transaction

The Payment Server records the transaction details and final status in the database.

​
Step 14: Show Success/Failure Message

The user is shown a success or failure message on the checkout page, then redirected to your callback URL with payment status details.

​
Payment Methods Supported

Mobile Wallets

JazzCash, Easypaisa, NayaPay, SadaPay

Cards

Visa, Mastercard (coming soon)

Bank Transfer

Direct bank transfers (coming soon)

Buy Now Pay Later

Installment options (coming soon)

​
Callback URL

​
How It Works

After payment completion (success or failure), the customer is redirected to your callbackUrl with payment status details appended as query parameters. Example callback redirect:
https://yoursite.com/payment/callback?payment_intent_id=550e8400-e29b-41d4-a716-446655440000&status=completed&order_ref=ORD12345
Query parameters added:
  • payment_intent_id - The unique payment intent ID
  • status - Payment status (e.g., “completed”, “cancelled”, “failed”)
  • order_ref - Your order reference number
Never rely solely on callback URL redirects for order fulfillment. Always verify payment status using webhooks or the Transaction API before delivering goods/services.

​
Best Practices

After customer returns to your site, verify the payment status by:
  1. Checking webhook notifications
  2. Querying the transaction API
  3. Never trust query parameters alone
Checkout URLs expire after the time specified in expiresAt. Always check if the URL is still valid before redirecting customers.
Use meaningful orderRef values that help you identify orders in your system.
  • Use HTTPS URLs
  • Ensure URLs are publicly accessible
  • Handle both success and failure scenarios
  • Don’t expose sensitive information in URLs
  • Your callback URL can include custom parameters that will be preserved
Always store the paymentIntentId in your database linked to the order for future reference and reconciliation.

​
Security Considerations

API Key Security

Never expose your API key on the frontend. Always call the checkout API from your backend server.

HTTPS Only

Ensure callback URLs use HTTPS to protect customer data in transit.

Webhook Verification

Verify webhook signatures to ensure notifications are from Waypay.

Amount Validation

Always validate the payment amount matches your order total before creating checkout.

​
Checkout Page Features

The Waypay hosted checkout page includes:
  • ✅ Responsive Design - Works on desktop, tablet, and mobile
  • ✅ Multiple Payment Methods - Cards, mobile wallets, and more
  • ✅ Multi-language Support - English and Urdu
  • ✅ Real-time Validation - Instant feedback on form inputs
  • ✅ Security - PCI DSS compliant infrastructure
  • ✅ Brand Customization - Display your logo and brand colors

​
Testing

In test mode, use these credentials:

​
JazzCash Test

  • Mobile: 03001234567
  • CNIC Last 6: 123456
  • OTP: 123456

​
Easypaisa Test

  • Mobile: 03001234567
  • CNIC Last 6: 123456
  • OTP: 123456
Test transactions won’t charge real money and won’t affect production data.

​
Next Steps

Checkout API Reference

View complete API documentation

Webhook Setup

Configure payment notifications

Transaction Status

Track payment status

Customize Checkout

Brand your checkout page
