Overview

The deposit flow allows you to collect payments directly from customer mobile wallets (JazzCash, Easypaisa, NayaPay, SadaPay). This is ideal for e-commerce checkouts, bill payments, and any scenario where you need to charge a customer’s mobile wallet.

​

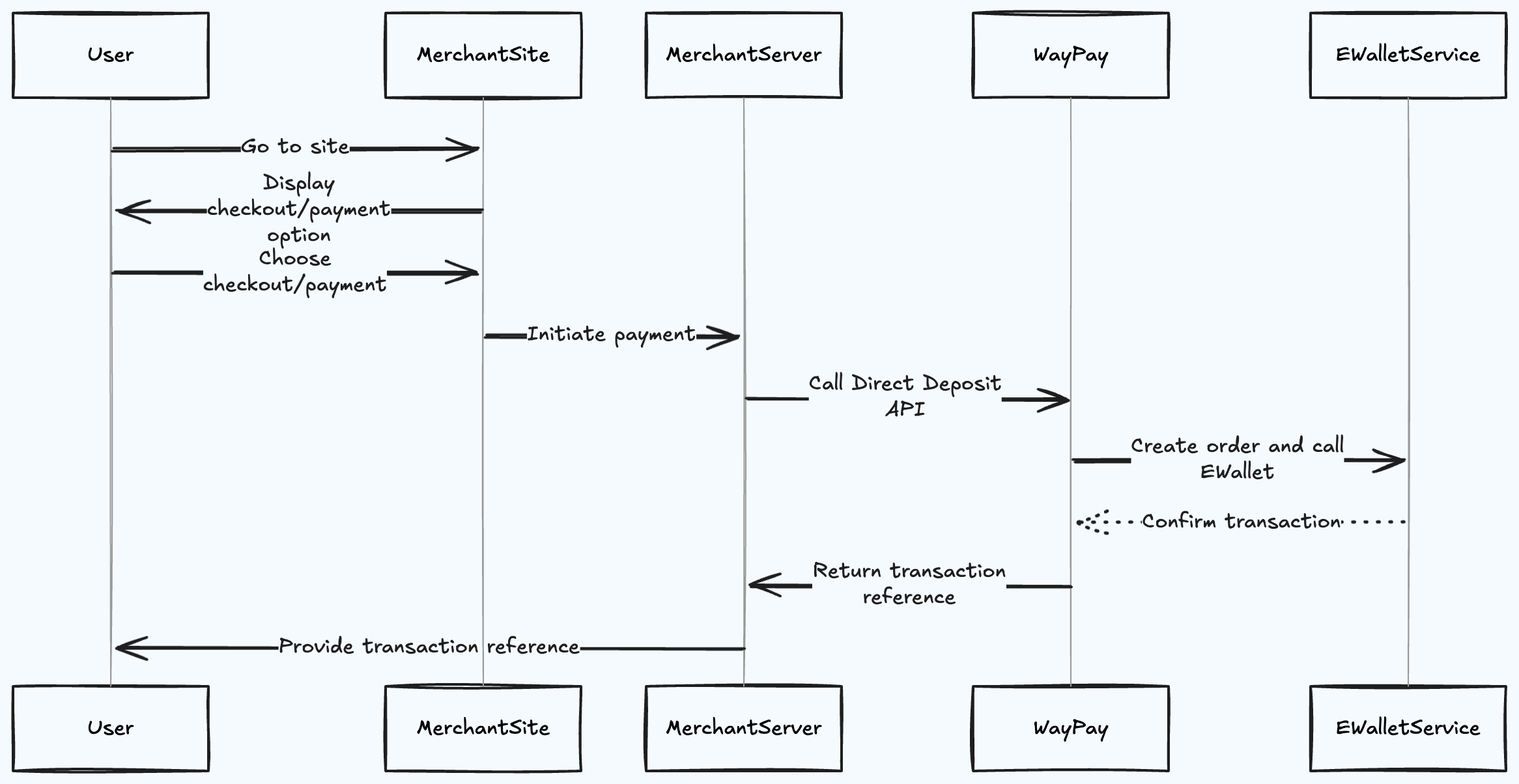

Flow Diagram

Deposit Flow Diagram - Light Mode

​
How It Works

​
Step 1: User Initiates Payment

The customer visits your merchant site and proceeds to checkout, selecting their preferred mobile wallet payment option.

​
Step 2: Merchant Server Calls Deposit API

Your backend server calls the Waypay /Payment/deposit endpoint with:
  • Customer’s mobile wallet number
  • Payment amount
  • Wallet provider (JazzCash, Easypaisa, etc.)
  • Last 6 digits of customer’s CNIC
  • Customer and order details
curl --request POST \
  --url https://waypay-merchant-api.icydesert-41d42f7e.uaenorth.azurecontainerapps.io/Gateway/v1/Payment/deposit \
  --header 'SWICH-API-Key: pk_test_xxxxxxxx' \
  --header 'Content-Type: application/json' \
  --data '{
    "mobileNumber": "03001234567",
    "amount": 1500,
    "walletProvider": 1,
    "last6CNICDigits": "123456",
    "currency": "PKR",
    "description": "Product Purchase",
    "customerRef": {
      "name": "Ali Ahmed",
      "email": "ali@example.com",
      "cnic": "4210112345678",
      "phone": "03001234567"
    },
    "orderRef": {
      "orderRef": "ORD123456"
    }
  }'

​
Step 3: Waypay Creates Order and Calls E-Wallet Service

WayPay processes your request and communicates with the mobile wallet provider (EWalletService) to initiate the charge.

​
Step 4: E-Wallet Confirms Transaction

The mobile wallet service:
  1. Sends an OTP to the customer’s registered mobile number
  2. Validates the customer’s CNIC digits
  3. Waits for customer confirmation

​
Step 5: Transaction Reference Returned

WayPay returns a transaction reference to your merchant server:
{
  "paymentIntentId": "770e8400-e29b-41d4-a716-446655440000",
  "amount": 1500,
  "currency": "PKR",
  "merchantReference": "ORD123456",
  "walletChargeInfo": {
    "provider": "JazzCash",
    "status": "Pending",
    "transactionReference": "JC20251213123456",
    "message": "OTP sent to customer",
    "isSuccess": true,
    "errorDetails": null
  }
}

​
Step 6: Merchant Provides Reference to User

Your site displays the transaction reference to the customer, allowing them to track the payment status.

​
Fee Structure

Important: A transaction fee is deducted from each deposit before being added to your merchant balance.

​
How Fees Work

When a customer makes a deposit:
  1. Customer pays: Full amount (e.g., PKR 1,500)
  2. Transaction fee deducted: Based on your merchant rate (e.g., PKR 45)
  3. Added to your balance: Amount minus fee (e.g., PKR 1,455)
Example Calculation:
Deposit Amount:     PKR 1,500
Transaction Fee:    PKR 45 (3%)
Net Amount:         PKR 1,455
─────────────────────────────
Amount Added to
Merchant Balance:   PKR 1,455

​
Fee Breakdown

The transaction fee includes:
  • Platform processing fee
  • Mobile wallet provider charges
  • Payment gateway costs
Fee rates vary based on:
  • Your merchant agreement
  • Transaction volume
  • Payment method used
Check your merchant dashboard for your specific fee structure.

​
Wallet Provider Codes

Use these codes when specifying the walletProvider parameter:
ProviderCodeDescription
JazzCash1Pakistan’s leading mobile wallet
Easypaisa2Popular mobile wallet service
NayaPay3Digital wallet platform
SadaPay4Modern digital wallet

​
Important Considerations

Always validate that the customer’s mobile number matches the wallet account holder. The last 6 CNIC digits are used for verification.

​
Customer Experience

  1. OTP Delivery: Customer receives an OTP on their mobile wallet number
  2. Verification: Customer enters OTP in their mobile wallet app
  3. Confirmation: Transaction is completed once OTP is verified
  4. Timeout: OTP typically expires in 5 minutes

​
Best Practices

Ensure the mobile number is in the correct format (e.g., 03001234567 or +923001234567) before making the API call.
Set up webhook endpoints to receive real-time payment status updates instead of polling. Webhooks include fee information in the transaction details.
If the API call fails, implement exponential backoff retry logic with a maximum of 3 attempts.
Always store the paymentIntentId and transactionReference for reconciliation and customer support.
Show customers clear instructions about:
  • Checking their mobile for OTP
  • OTP expiration time
  • How to retry if OTP expires
When displaying prices to customers, ensure your pricing accounts for transaction fees so you receive the expected net amount.

​
Reconciliation

When reconciling deposits, use the Transaction API to get detailed fee information:
{
  "id": "770e8400-e29b-41d4-a716-446655440000",
  "amount": 1500.00,
  "currency": "PKR",
  "fee": 45.00,
  "netAmount": 1455.00,
  "txType": "Deposit",
  "status": "Completed",
  "createdAtUtc": "2025-12-13T10:30:00Z"
}

​
Error Handling

Common errors and how to handle them:
ErrorCauseSolution
Invalid mobile numberNumber format incorrectValidate format before API call
CNIC mismatchLast 6 digits don’t matchAsk customer to verify CNIC
Insufficient balanceCustomer wallet balance lowInform customer to top up wallet
Wallet service unavailableProvider downtimeRetry later or offer alternative

​
Webhook Events

You’ll receive webhook notifications for these events:
  • deposit.pending - OTP sent to customer
  • deposit.completed - Payment successful (includes fee and net amount)
  • deposit.failed - Payment failed or expired
  • deposit.expired - OTP expired without completion

​
